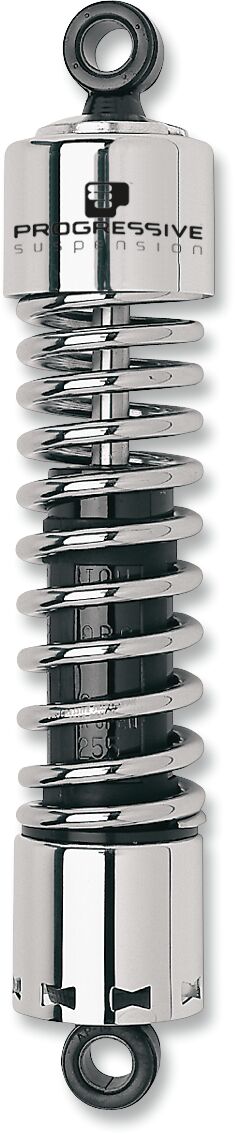

Progressive Suspension 412 Series Shocks - Pair, Coilover Monotube, 412 Series without Covers - Black / Chrome for Harley-Davidson Sportster & FXR 1977-2003
Description
412 Series Shocks
- Designed specifically for Harley models
- The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
- A five position cam style spring load preload adjuster lets you easily dial in your ride
- Some or all shocks listed are approved for road use. Refer to most recent certificate for current listing
- There are multiple style options available, like full show-chrome or black covers; or either chrome or black springs and end caps
- Made in the USA
- All shocks are measured center-of-eyelet to center-of-eyelet.
- When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
- A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
- A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
- Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
- Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tyre contact.
Specifications
- Material: Steel
- Units: Pair
- Model: 412 Series without Covers
- Extended Length Imperial: 11.00"
- Type: Coilover Monotube
- Progressive Spring Rate: 2,05 kg/mm - 2,77 kg/mm (115 lb/in - 155 lb/in)
- Duty: Heavy Duty
- Product Name: Shock Absorber
- Riding Style: Street
- Adjustment Style: Automatic
- Extended Length: 279,40 mm (11,00")
- Colour/Finish: Black| Chrome
- Spring Type: Single Progressive Rate
- Progressive Spring Rate Imperial: 115.00 lb/in - 155.00 lb/in
- Damping Method: Gas Charged
- Extended Length Metric: 279.40 mm
- Progressive Spring Rate Metric: 2.05 kg/mm - 2.77 kg/mm
- Reservoir Location: Internal
- Mounting Position: Rear
Fitment
- 1987-1994 Harley Davidson FXLR 1340 Low Rider Custom
- 1982-1983 Harley Davidson FXR 1340 II Super Glide II
- 1986-1994 Harley Davidson FXR 1340 Super Glide
- 1987 Harley Davidson FXRC 1340 Low Glide Custom
- 1982 Harley Davidson FXRS 1340 II Super Glide II
- 1984-1985 Harley Davidson FXRS 1340 Low Glide
- 1986-1992 Harley Davidson FXRS 1340 Low Rider
- 1989-1993 Harley Davidson FXRS CON. 1340 Low Rider Convertible
- 1987-1993 Harley Davidson FXRS-SP 1340 Low Rider Sport Edition (Fxrsl)
- 1984-1992 Harley Davidson FXRT 1340 Sport Glide
- 1996-2003 Harley Davidson XL 1200 C Sportster Custom
- 1996-2003 Harley Davidson XL 1200 S Sport
- 1998-2003 Harley Davidson XL 883 C Sportster 53 Custom
- 2002-2003 Harley Davidson XL 883 R Roadster
- 1977-1978 Harley Davidson XLCR 1000 Cafe Racer
- 1979-1985 Harley Davidson XLH 1000 Sportster
- 1986-1987 Harley Davidson XLH 1100 Sportster
- 1988-2003 Harley Davidson XLH 1200 Sportster
- 1986-1987, 1990-2003 Harley Davidson XLH 883 Sportster
- 1988-1995 Harley Davidson XLH 883 Sportster Deluxe
- 1988-2003 Harley Davidson XLH 883 Sportster Hugger
- 1979-1982, 1984-1985 Harley Davidson XLS 1000 Roadster
- 1983 Harley Davidson XLS 1000 Roadster Custom Sport
- 1983-1985 Harley Davidson XLX 1000 Sportster
- 1984-1985 Harley Davidson XR 1000
Part Numbers
Item Number: PS4022C
Vendor Part Number: 412-4022C
Barcode Number: 4124022C
