Drag Specialties Handlebar Control Kit w/o Switches - Chrome - Aluminium, Die Cast - for Harley-Davidson FLH 1340 1982-1984 / Harley-Davidson FLT 1340 1982-1983 & More Models - 07-540NU
Description
Handlebar Control Kit w/o Switches
- Customise the most visible area the factory overlooked - the handlebar controls
- Designed to work with all 1" diameter handlebars
- Chrome die-cast clutch/brake controls with switch housings are sold in complete kits or as individual components
- OEM wires and switches mount directly into these housings, so there is no need for new wires and switches

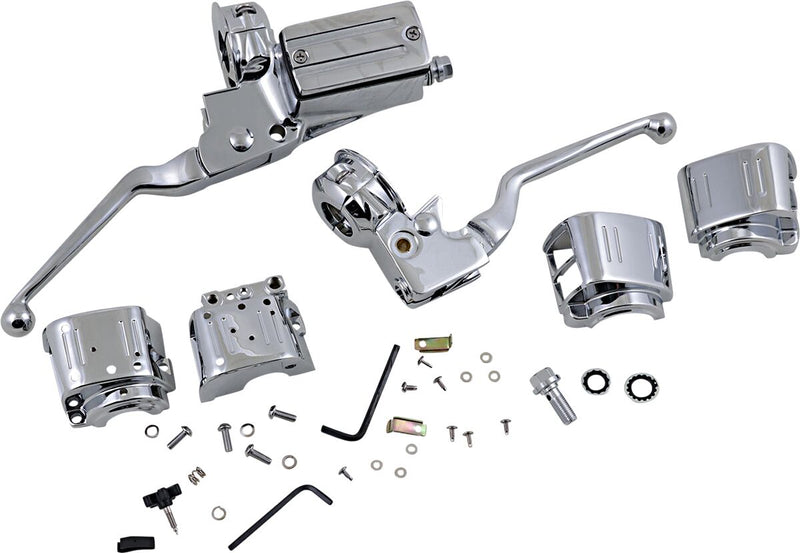

- Each Complete Kit includes clutch lever assembly with clamp half, a master cylinder assembly with clamp half, and the right and left switch housings
- Switch Housing Kit includes right and left housing only with mounting hardware
- Kits come complete with all hardware for easy installation
Lower switch housings will not fit '84-'95 models with radio control switches in housings.
Specifications
Brake Master Cylinder Bore Diameter Imperial : 3/4"
Clamping Diameter : 25,4 mm (1")
Clamping Diameter Imperial : 1"
Base Finish : Chrome
Riding Style : Street
Product Name : Control
Colour/Finish : Chrome
Brake Master Cylinder Bore Diameter : 19,1 mm (3/4")
Features : without Switches
Disc : Dual
Brake Master Cylinder Bore Diameter Metric : 19.1 mm
Type : Handlebar
Material : Aluminium| Die Cast
Actuation : Hydraulic| Mechanical
Clamping Diameter Metric : 25.4 mm
Base Colour : Silver
Units : Kit
For Braking System : Non-ABS
Fitment
- Harley-Davidson FLH 1340 Electra Glide (1982 - 1983)
- Harley-Davidson FLH 1340 Electra Glide Belt Drive (1984)
- Harley-Davidson FLH 1340 Electra Glide Standard (1984)
- Harley-Davidson FLHC 1340 Electra Glide Classic (1982 - 1983)
- Harley-Davidson FLHT 1340 Electra Glide (1983 - 1984)
- Harley-Davidson FLHTC 1340 Electra Glide Classic (1983 - 1984)
- Harley-Davidson FLHTE 1340 Electra Glide Classic (1984)
- Harley-Davidson FLHX 1340 Electra Glide Special (1984)
- Harley-Davidson FLT 1340 Tour Glide (1982 - 1983)
- Harley-Davidson FLTC 1340 Tour Glide Classic (1982 - 1983)
- Harley-Davidson FXB 1340 Sturgis (1982)
- Harley-Davidson FXDG 1340 (1983)
- Harley-Davidson FXE 1340 Super Glide (1982 - 1983)
- Harley-Davidson FXEF 1340 Fat Bob (1982)
- Harley-Davidson FXR 1340 II Super Glide II (1982 - 1983)
- Harley-Davidson FXRS 1340 II Super Glide II (1982)
- Harley-Davidson FXS 1340 Low Rider (1982 - 1983)
- Harley-Davidson FXWG 1340 Wide Glide (1982 - 1983)
- Harley-Davidson XLH 1000 Sportster (1982 - 1983)
- Harley-Davidson XLS 1000 Roadster (1982)
- Harley-Davidson XLS 1000 Roadster Custom Sport (1983)
- Harley-Davidson XLX 1000 Sportster (1983)
Part Numbers
Item Number: 06100500
Vendor Part Number: 07-540NU
Barcode Number: 0610-0500
