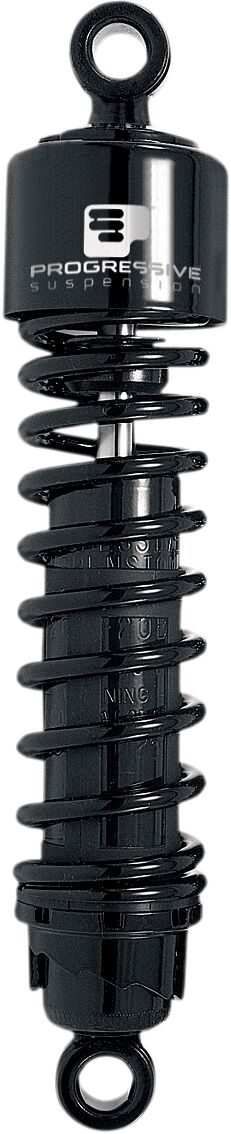

Progressive Suspension 412 Series Shocks - Coilover Monotube, Steel, Pair - Black for Harley-Davidson Sportster & FXR 1977-2022
Description
412 Series Shocks
- Designed specifically for Harley models
- The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
- A five position cam style spring load preload adjuster lets you easily dial in your ride
- Some or all shocks listed are approved for road use. Refer to most recent certificate for current listing
- There are multiple style options available, like full show-chrome or black covers; or either chrome or black springs and end caps
- Made in the USA
- All shocks are measured center-of-eyelet to center-of-eyelet.
- When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
- A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
- A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
- Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
- Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tyre contact.
Specifications
- Duty: Standard
- Mounting Position: Rear
- Spring Type: Single Progressive Rate
- Progressive Spring Rate Imperial: 75.00 lb/in - 120.00 lb/in
- Adjustment Style: Automatic
- Progressive Spring Rate Metric: 1.35 kg/mm - 2.15 kg/mm
- Model: 412 Series without Covers
- Extended Length Metric: 343.00 mm
- Reservoir Location: Internal
- Units: Pair
- Damping Method: Gas Charged
- Progressive Spring Rate: 1,35 kg/mm - 2,15 kg/mm (75 lb/in - 120 lb/in)
- Riding Style: Street
- Type: Coilover Monotube
- Colour/Finish: Black
- Material: Steel
- Extended Length: 343,00 mm (13,50")
- Extended Length Imperial: 13.50"
- Product Name: Shock Absorber
Fitment
- Harley-Davidson FXLR 1340 Low Rider Custom (1987 - 1994)
- Harley-Davidson FXR 1340 II Super Glide II (1982 - 1983)
- Harley-Davidson FXR 1340 Super Glide (1986 - 1994)
- Harley-Davidson FXRC 1340 Low Glide Custom (1987)
- Harley-Davidson FXRS 1340 II Super Glide II (1982)
- Harley-Davidson FXRS 1340 Low Glide (1984 - 1985)
- Harley-Davidson FXRS 1340 Low Rider (1986 - 1992)
- Harley-Davidson FXRS CON. 1340 Low Rider Convertible (1989 - 1993)
- Harley-Davidson FXRS-SP 1340 Low Rider Sport Edition (Fxrsl) (1987 - 1993)
- Harley-Davidson FXRT 1340 Sport Glide (1984 - 1992)
- Harley-Davidson XL 1200 C ABS Sportster Custom (2014 - 2019)
- Harley-Davidson XL 1200 C Sportster Custom (1996 - 2019)
- Harley-Davidson XL 1200 C Sportster Custom 110th Anniversary (2013)
- Harley-Davidson XL 1200 CX ABS Roadster (2016 - 2017)
- Harley-Davidson XL 1200 CX ABS Sportster Roadster (2018 - 2020)
- Harley-Davidson XL 1200 CX Roadster (2016 - 2017)
- Harley-Davidson XL 1200 CX Sportster Roadster (2018 - 2020)
- Harley-Davidson XL 1200 L Low (2006 - 2011)
- Harley-Davidson XL 1200 N Nightster (2007 - 2012)
- Harley-Davidson XL 1200 NS ABS Sportster Iron (2019 - 2021)
- Harley-Davidson XL 1200 NS Sportster Iron (2021)
- Harley-Davidson XL 1200 R Roadster (2004 - 2008)
- Harley-Davidson XL 1200 S Sport (1996 - 2003)
- Harley-Davidson XL 1200 T ABS Super Low (2014 - 2017)
- Harley-Davidson XL 1200 T Super Low (2014 - 2017)
- Harley-Davidson XL 1200 V ABS Seventy-Two (2014 - 2016)
- Harley-Davidson XL 1200 V Seventy-Two (2012 - 2016)
- Harley-Davidson XL 1200 X ABS Forty-Eight (2014 - 2017)
- Harley-Davidson XL 1200 X ABS Sportster Forty-Eight (2018 - 2022)
- Harley-Davidson XL 1200 X ABS Sportster Forty-Eight Anniversary (ANX) (2018)
- Harley-Davidson XL 1200 X Forty-Eight (2010 - 2017)
- Harley-Davidson XL 1200 X Sportster Forty-Eight (2018 - 2022)
- Harley-Davidson XL 1200 XS ABS Sportster Forty-Eight Special (2019 - 2020)
- Harley-Davidson XL 883 C Sportster 53 Custom (1998 - 2003)
- Harley-Davidson XL 883 C Sportster Custom (2004 - 2010)
- Harley-Davidson XL 883 L Low (2005 - 2010)
- Harley-Davidson XL 883 N ABS Iron (2014 - 2017)
- Harley-Davidson XL 883 N ABS Sportster Iron (2018 - 2022)
- Harley-Davidson XL 883 N Iron (2009 - 2017)
- Harley-Davidson XL 883 N Sportster Iron (2018 - 2022)
- Harley-Davidson XL 883 R Roadster (2002 - 2003)
- Harley-Davidson XL 883 R Roadster (2006 - 2010)
- Harley-Davidson XL 883 Sportster (2004 - 2009)
- Harley-Davidson XL50 1200 50th Anniversary (2007)
- Harley-Davidson XLCR 1000 Cafe Racer (1977 - 1978)
- Harley-Davidson XLH 1000 Sportster (1979 - 1985)
- Harley-Davidson XLH 1100 Sportster (1986 - 1987)
- Harley-Davidson XLH 1200 Sportster (1988 - 2003)
- Harley-Davidson XLH 883 Sportster (1986 - 1987)
- Harley-Davidson XLH 883 Sportster (1990 - 2003)
- Harley-Davidson XLH 883 Sportster Deluxe (1988 - 1995)
- Harley-Davidson XLH 883 Sportster Hugger (1988 - 2003)
- Harley-Davidson XLS 1000 Roadster (1979 - 1982)
- Harley-Davidson XLS 1000 Roadster (1984 - 1985)
- Harley-Davidson XLS 1000 Roadster Custom Sport (1983)
- Harley-Davidson XLX 1000 Sportster (1983 - 1985)
- Harley-Davidson XR 1000 (1984 - 1985)
- Harley-Davidson XR 1200 (2008 - 2010)
Part Numbers
Item Number: DS222012
Vendor Part Number: 412-4009B
Barcode Number: 4009BG
