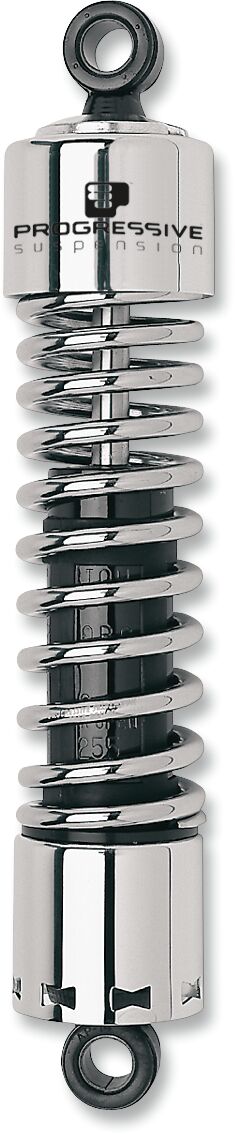

Progressive Suspension 412 Series Shocks - Pair, 412 Series without Covers, Coilover Monotube - Black / Chrome for Harley-Davidson Sportster 1957-1985
Description
412 Series Shocks
- Designed specifically for Harley models
- The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
- A five position cam style spring load preload adjuster lets you easily dial in your ride
- Some or all shocks listed are approved for road use. Refer to most recent certificate for current listing
- There are multiple style options available, like full show-chrome or black covers; or either chrome or black springs and end caps
- Made in the USA
- All shocks are measured center-of-eyelet to center-of-eyelet.
- When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
- A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
- A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
- Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
- Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tyre contact.
Specifications
- Model: 412 Series without Covers
- Damping Method: Gas Charged
- Riding Style: Street
- Type: Coilover Monotube
- Mounting Position: Rear
- Extended Length: 362,00 mm (14,25")
- Progressive Spring Rate: 2,90 kg/mm - 3,40 kg/mm (160 lb/in - 190 lb/in)
- Reservoir Location: Internal
- Material: Steel
- Colour/Finish: Black| Chrome
- Units: Pair
- Spring Type: Single Progressive Rate
- Progressive Spring Rate Metric: 2.90 kg/mm - 3.40 kg/mm
- Adjustment Style: Automatic
- Extended Length Imperial: 14.25"
- Product Name: Shock Absorber
- Duty: Standard
- Progressive Spring Rate Imperial: 160.00 lb/in - 190.00 lb/in
- Extended Length Metric: 362.00 mm
Fitment
- 1957-1959 Harley Davidson XL 900 Sportster
- 1958 Harley Davidson XLC 900 Sportster
- 1972-1978 Harley Davidson XLCH 1000 Sportster
- 1958-1972 Harley Davidson XLCH 900 Sportster
- 1977-1978 Harley Davidson XLCR 1000 Cafe Racer
- 1972-1985 Harley Davidson XLH 1000 Sportster
- 1958-1972 Harley Davidson XLH 900 Sportster
- 1978-1982, 1984-1985 Harley Davidson XLS 1000 Roadster
- 1983 Harley Davidson XLS 1000 Roadster Custom Sport
- 1977-1978 Harley Davidson XLT 1000 Sportster
- 1983-1985 Harley Davidson XLX 1000 Sportster
Part Numbers
Item Number: DS222003
Vendor Part Number: 412-4012C
Barcode Number: 4012C
