Legend REVO ARC Piggyback Coil Suspension for XL Models - Black - Pair - for Selected Harley-Davidson Sportster 2004-2022 Models - 1310-1896
Description

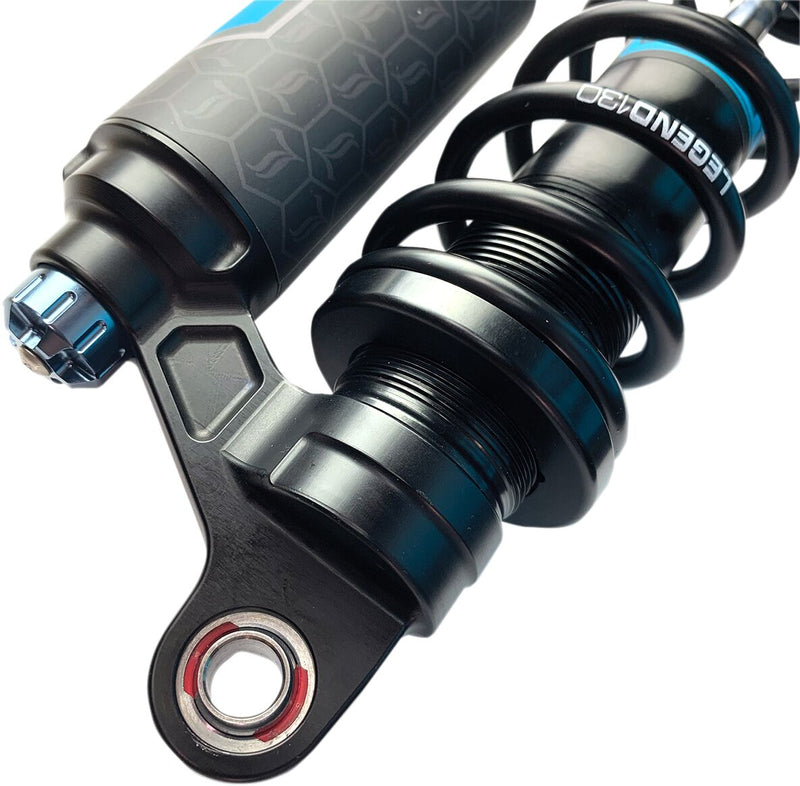

Legend REVO ARC Piggyback Coil Suspension for XL Models
- Available in Black, Gold and Clear Type III hard coat anodize
- Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
- Adjusts by hand, no tools needed
- Available in 13" and 14", standard or heavy-duty applications
- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
- 35 mm monotube construction
- Deflective disc valve stacks
- Balanced/Matched piston and base-valve design specific for motorcycle applications
- Low friction sealing system and sliding bearings for improved performance and feel
- Features independent compression and rebound damping adjusters that are specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob
- Provides optimum rebound and compression performance for any given rider weight, personal ride preference, or personal riding style
- Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
- Light to heavy riders can fine-tune ride preference
- Aggressive to casual riding styles can tune to desired quality or personal preference
- Made by hand in Sturgis, SD USA
Sportster Models: Heavy Duty application is recommended for 500 lb+ rider and passenger total weight. Also consider Heavy Duty if the majority of your riding is 2-UP, stunt riding, or aggressive riding style. Does not fit Sportster Super Low. Does not fit Sportster S (RH1250). Does not fit Sportster Nightster (RH975). 14" Shocks require short exhaust.
Specifications
- Duty: Standard
- Mounting Position: Rear
- Extended Length: 356,00 mm (14,00")
- Product Name: Shock Absorber
- Riding Style: Street
- Units: Pair
- Extended Length Imperial: 14.00"
- Reservoir Location: Piggyback
- Colour/Finish: Black
- Extended Length Metric: 356.00 mm
Fitment
- Harley-Davidson XL 1200 C ABS Sportster Custom (2014 - 2020)
- Harley-Davidson XL 1200 C Sportster Custom (2004 - 2020)
- Harley-Davidson XL 1200 C Sportster Custom 110th Anniversary (2013)
- Harley-Davidson XL 1200 CA ABS Sportster Custom LE A (2014 - 2016)
- Harley-Davidson XL 1200 CB ABS Sportster Custom LE B (2014 - 2017)
- Harley-Davidson XL 1200 CX ABS Roadster (2016 - 2017)
- Harley-Davidson XL 1200 CX ABS Sportster Roadster (2018 - 2020)
- Harley-Davidson XL 1200 CX Roadster (2016 - 2017)
- Harley-Davidson XL 1200 CX Sportster Roadster (2018 - 2020)
- Harley-Davidson XL 1200 L Low (2006 - 2011)
- Harley-Davidson XL 1200 N Nightster (2007 - 2012)
- Harley-Davidson XL 1200 NS ABS Sportster Iron (2018 - 2021)
- Harley-Davidson XL 1200 NS Sportster Iron (2021)
- Harley-Davidson XL 1200 R Roadster (2004 - 2008)
- Harley-Davidson XL 1200 T ABS Sportster Superlow (2018 - 2019)
- Harley-Davidson XL 1200 T ABS Super Low (2014 - 2017)
- Harley-Davidson XL 1200 T Sportster Superlow (2018 - 2019)
- Harley-Davidson XL 1200 T Super Low (2014 - 2017)
- Harley-Davidson XL 1200 V ABS Seventy-Two (2014 - 2016)
- Harley-Davidson XL 1200 V Seventy-Two (2012 - 2016)
- Harley-Davidson XL 1200 X ABS Forty-Eight (2014 - 2017)
- Harley-Davidson XL 1200 X ABS Sportster Forty-Eight (2018 - 2022)
- Harley-Davidson XL 1200 X ABS Sportster Forty-Eight Anniversary (ANX) (2018)
- Harley-Davidson XL 1200 X Forty-Eight (2010 - 2017)
- Harley-Davidson XL 1200 X Sportster Forty-Eight (2018 - 2022)
- Harley-Davidson XL 1200 XS ABS Sportster Forty-Eight Special (2018 - 2020)
- Harley-Davidson XL 883 C Sportster Custom (2004 - 2010)
- Harley-Davidson XL 883 L ABS Sportster SuperLow (2018 - 2019)
- Harley-Davidson XL 883 L ABS Super Low (2014 - 2017)
- Harley-Davidson XL 883 L Low (2005 - 2010)
- Harley-Davidson XL 883 L Sportster SuperLow (2018 - 2019)
- Harley-Davidson XL 883 L Super Low (2011 - 2017)
- Harley-Davidson XL 883 N ABS Iron (2014 - 2017)
- Harley-Davidson XL 883 N ABS Sportster Iron (2018 - 2022)
- Harley-Davidson XL 883 N Iron (2009 - 2017)
- Harley-Davidson XL 883 N Sportster Iron (2018 - 2022)
- Harley-Davidson XL 883 R ABS Roadster (2014 - 2015)
- Harley-Davidson XL 883 R Roadster (2004)
- Harley-Davidson XL 883 R Roadster (2006 - 2013)
- Harley-Davidson XL 883 Sportster (2004 - 2009)
- Harley-Davidson XL50 1200 50th Anniversary (2007)
- Harley-Davidson XR 1200 (2008 - 2010)
- Harley-Davidson XR 1200 X (2011 - 2013)
Part Numbers
Item Number: 13101896
Vendor Part Number: 1310-1896
Barcode Number: 13101896
