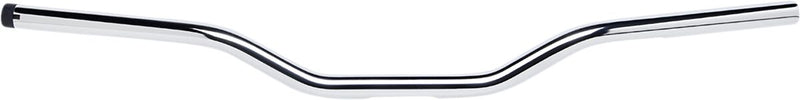

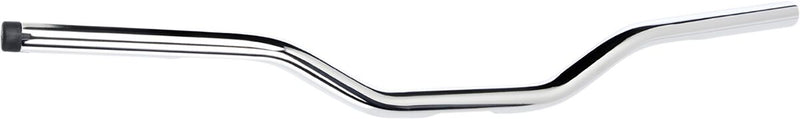

Biltwell 1" Handlebar w/ TBW Plugs - Chrome - Chromoly - Width: 77,5 cm (30-1/2") - Rise: 57,2 mm (2-1/4") - Handlebar Diameter: 25,4 mm (1") - 6007-1057
Description
1" Handlebar w/ TBW Plugs

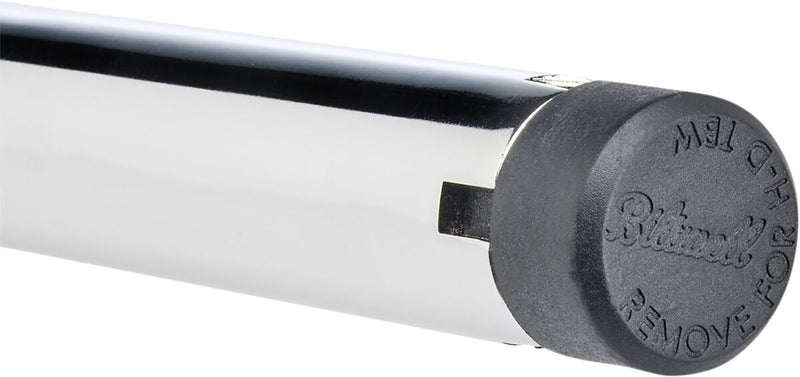

- Injection-moulded, reinforced nylon plug in the bar end on the throttle side lets the handlebar work with select stock and aftermarket single- and dual-cable throttles; simply remove for TBW compatibility
- Seamless, thick-walled 0.120" (3 mm) 4130 chromoly construction
- Precision mandrel-bent tubing for precise alignment and comfortable ergonomics
- Milled slots on bar ends and clamping area for clean internal wire routing
- Notched and internally tapered right-side bar end accepts Harley Throttle-By-Wire control module
- Precision mitered, TIG welded tube joints
Specifications
- Center Width Metric: 12.5 cm
- End Rise Imperial: 1-3/4"
- Height: 57,2 mm (2-1/4")
- Units: Each
- Handlebar Diameter Imperial: 1"
- Controls Diameter Metric: 25.4 mm
- Clamping Diameter Metric: 25.4 mm
- Width Imperial: 30-1/2"
- End Rise: 44,5 mm (1-3/4")
- Base Colour: Silver
- Pullback/Sweep: 63,5 mm (2-1/2")
- Controls Diameter Imperial: 1"
- Center Width Imperial: 5"
- Material: Chromoly
- Center Width: 12,5 cm (5")
- Rise: 57,2 mm (2-1/4")
- Colour/Finish: Chrome
- Controls Diameter: 25,4 mm (1")
- Riding Style: Street
- Height Imperial: 2-1/4"
- Width: 77,5 cm (30-1/2")
- Base Finish: Chrome
- Handlebar Diameter Metric: 25.4 mm
- Width Metric: 77.5 cm
- Features: Cable Throttle Application| Notched for Throttle-By-Wire| Slotted| Smooth, Unknurled
- Height Metric: 57.2 mm
- Pullback/Sweep Imperial: 2-1/2"
- Clamping Diameter Imperial: 1"
- End Rise Metric: 44.5 mm
- Pullback/Sweep Metric: 63.5 mm
- Product Name: Handlebar
- Rise Metric: 57.2 mm
- Rise Imperial: 2-1/4"
- Clamping Diameter: 25,4 mm (1")
- Type/Bend: Tracker
- Handlebar Diameter: 25,4 mm (1")
Part Numbers
Item Number: 06015648
Vendor Part Number: 6007-1057
Barcode Number: 0840258905258
