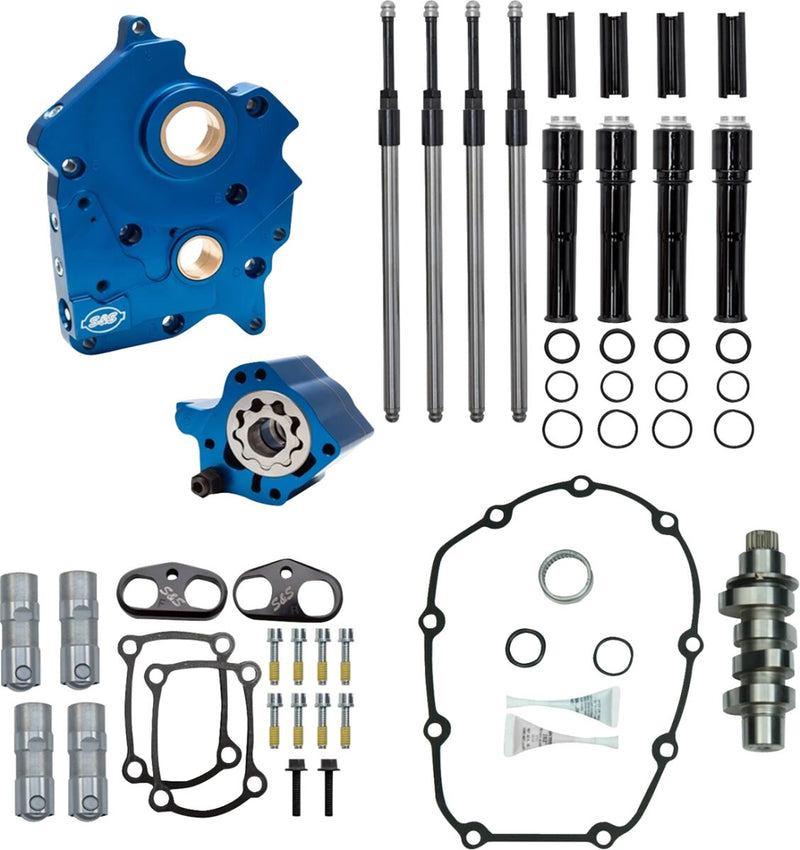

S&S Cycle Cam Chest Kit with HPT560 Cam - Chain Drive
Description
Cam Chest Kit with HPT560 Cam
- Bolt-in for easy installation
- Boost performance up to 24 HP increase over stock when paired with S&S Cylce intake and exhaust systems
- Gain 14 lb-ft of torque over stock for superior low-end pull and mid-range grunt
- Quickee Adjustable Pushrods:
- Simple installation and on bike adjustment
- No need to remove rocker boxes
- S&S Precision Tappets:
- Hand-assembled to exacting tolerances
- Reduced valvetrain noise with high RPM performance
- Lift tappet cuffs ensure close tolerance for consitstent oil pressure
- Oil Pump and Cam Plate:
- Precision CNC machined from billet aluminium
- Independent scavenge sections for flywheel cavity and cam chest
- Removable passage plugs for easy servicing
- Dual debris screens and magnetic pickup
- +44% increase in oil supply flow and +58% increase in scavenging effeciency
- Adjustable pressure relief valve (tunable while installed)
- Includes S&S High Performance Cam Chain Tensioner
- Works with stock valvetrain.
Specifications
Product Name: Camchest Kit
Intake Lobe Centerline Imperial: 112°
Units: Kit
Intake Open: 1°
Exhaust Lift Imperial: 0.555"
Exhaust Duration: 225°
Exhaust Open: 39°
Intake Lobe Centerline: 112°
Features: Black Pushrod Tubes
Intake Lift Imperial: 0.560"
Grind: 560 Series
Intake Duration: 219°
Exhaust Close: 7°
Exhaust Close Imperial: 7°
Exhaust Open Imperial: 39°
Type: Chain Drive
Exhaust Lobe Centerline Imperial: 105°
Intake Open Imperial: 1°
Intake Duration Imperial: 219°
Exhaust Duration Imperial: 225°
Exhaust Lift: 0,555"
Intake Close: 42°
Intake Lift at TDC: 0,047"
Exhaust Lift at TDC: 0,067"
Exhaust Lobe Centerline: 105°
Exhaust Lift at TDC Imperial: 0.067"
Intake Lift at TDC Imperial: 0.047"
Riding Style: Street
Intake Close Imperial: 42°
Intake Lift: 0,560"
Fitment
- Harley-Davidson FLHXSE 1977 ABS Street Glide CVO 121 2023-2026
- Harley-Davidson FLTRXSE 1977 ABS Road Glide CVO 121 2023-2025
- Harley-Davidson FLTRXSTSE 1977 ABS Road Glide ST CVO 121 2024-2025
- Harley-Davidson FLTRXSTSE 1977 ABS Road Glide ST CVO 121 H.O. 2026
Part Numbers
Item Number: 09251653
Vendor Part Number: 310-1433
Parts Europe Part Number: 09251653
